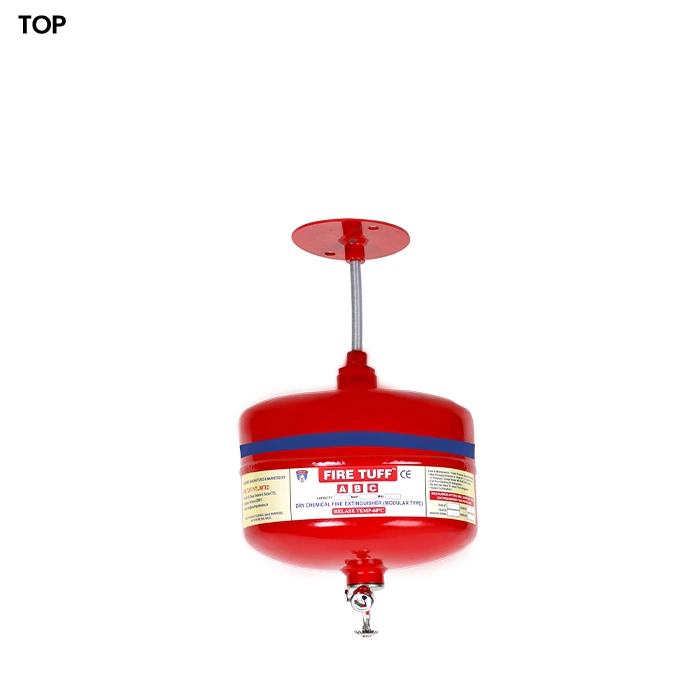

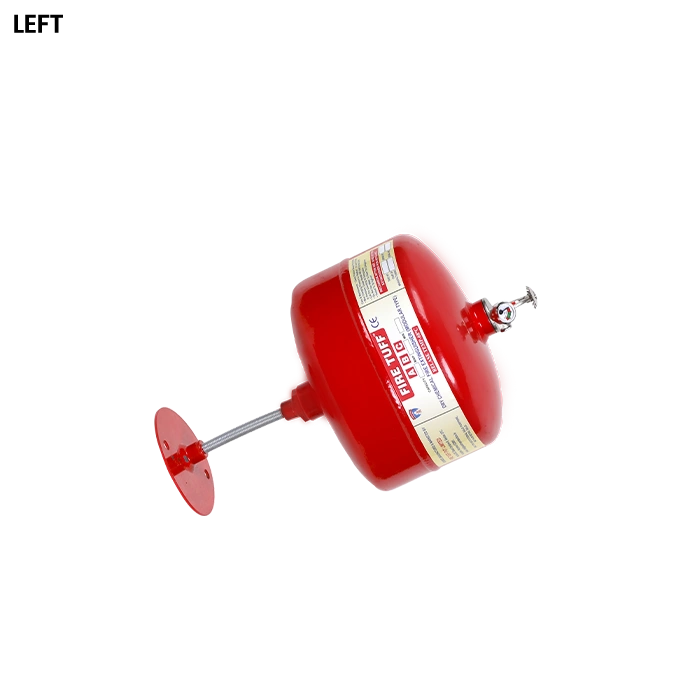

ABC DRY POWDER 10 KG MODULAR FIRE EXTINGUISHER(Map 40%)
5-years warranty*
10 days money back guarantee
ISI
15683
CE
Marketing
EN3
Certified
*1 Year Warranty on Regular Quality and 5 Years Warranty on High Quality Products
Need Help ? Talk to our product experts: +91 9818090824
Category
Details
Manufacturer M/s Firetuff Private Limited Trade Mark “FIRETUFF” Standard Code IS 15683:2018 Type Portable Stored Pressure Extinguishing Medium Mono Ammonium Phosphate based dry powder - 40% Body Mild Steel Sheet having Max. of 0.25% C, 0.05% P and 0.05% Neck Ring M.S. Pipe Valve Brass (Chrome Plated) Pressure Gauge/Indicator As per IS 15683:2018 Wall Mounting Bracket with Screw Mild Steel (Powder Coated) Activation Temperature 68°C Performance Requirement
A) Min. Effective Discharge Time: 8 Sec. (Actual: 10 Sec. approx)
B) Percentage of Discharge: Not Less than 85% (Actual: 94% approx)
Temperature Range -20 °C to 60 °C Service Pressure 15 bar Maximum Service Pressure 18 bar Routine Tests
Pressure Test (Pt): 35 bar (3.5 MPa)
Minimum Burst Pressure Test (Pb) for Body: 55 bar (5.5 MPa)
Leakage Test: Water Dip Test
Type Tests As per IS 15683 Dimensions Diameter: 315±5 mm Full Weight of Cylinder 14.50 kg (Approx) Anti-Corrosive Treatment Phosphate Treatment followed by epoxy powder coating of body DFT not less than 50µ Accessories (Brackets & Screws) Provided Miscellaneous
Inspection & Testing: As per approved GTP
Marking: As per IS 15683:2018
Approvals: BIS
Maintenance, Care and Refilling: As per IS:2190
Packing Corrugated Boxes
