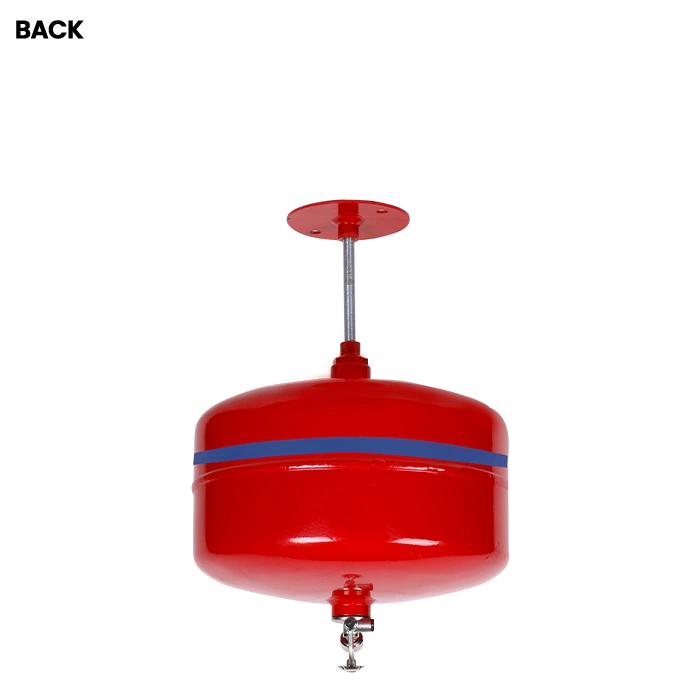

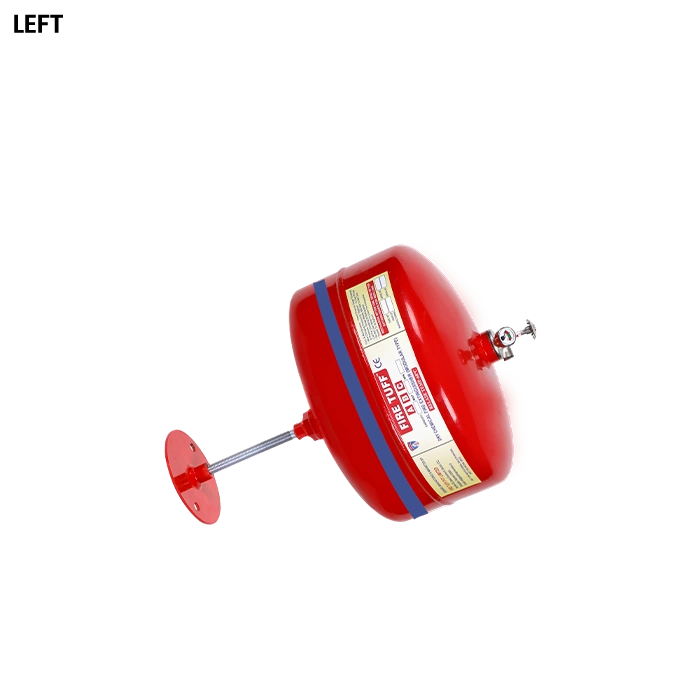

ABC DRY POWDER 2 KG MODULAR FIRE EXTINGUISHER(Map 40%)
5-years warranty*
10 days money back guarantee
ISI
15683
CE
Marketing
EN3
Certified
*1 Year Warranty on Regular Quality and 5 Years Warranty on High Quality Products
Need Help ? Talk to our product experts: +91 9818090824
Category
Details
Manufacturer M/s Firetuff Private Limited Trade Mark “FIRETUFF” Standard Code IS 15683:2018 Type Portable Stored Pressure Extinguishing Medium Mono Ammonium Phosphate based dry powder Body Mild Steel Sheet having Max. of 0.25% C, 0.05% P and 0.05% Neck Ring M.S. Pipe Valve Brass chrome plated Pressure Gauge/Indicator As per IS 15683:2018 Wall/Ceiling Mounting Bracket Mild steel (Powder Coated) Activation Temperature 68 Degree Performance Requirement
A) Min. effective Discharge Time: 6 Sec. (Actual: 8 Sec. approx.)
B) Percentage of Discharge: Not Less than 85% (Actual: 94% approx)
Temperature Range -20 °C to 60 °C Service Pressure 15 bar Maximum Service Pressure 18 bar Routine Tests
Pressure Test (Pt): 35 bar (3.5 MPa)
Minimum Burst Pressure Test (Pb): 55 bar (5.5 MPa)
Leakage Test: Water Dip Test
Type Tests As per IS 15683 Dimensions Diameter: 225±5 mm Full Weight of Cylinder 5 kg (Approx) Anti-Corrosive Treatment Phosphate Treatment followed by epoxy powder coating of body DFT not less than 50µ Accessories (Brackets & Screws) Provided Miscellaneous
Inspection & Testing: As per approved GTP
Marking: As per IS 15683:2018
Approvals: BIS
Maintenance, Care and Refilling: As per IS:2190
Packing Corrugated Boxes
