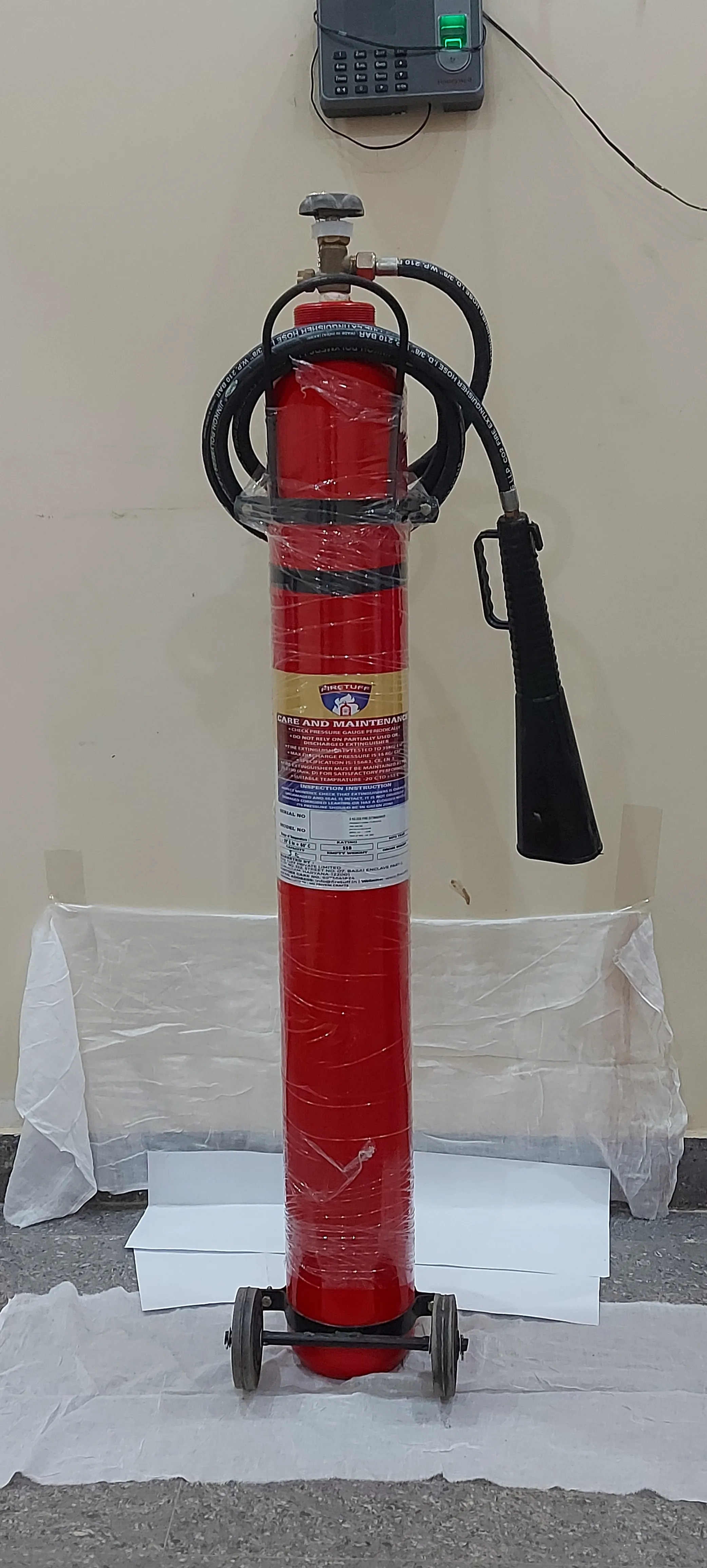

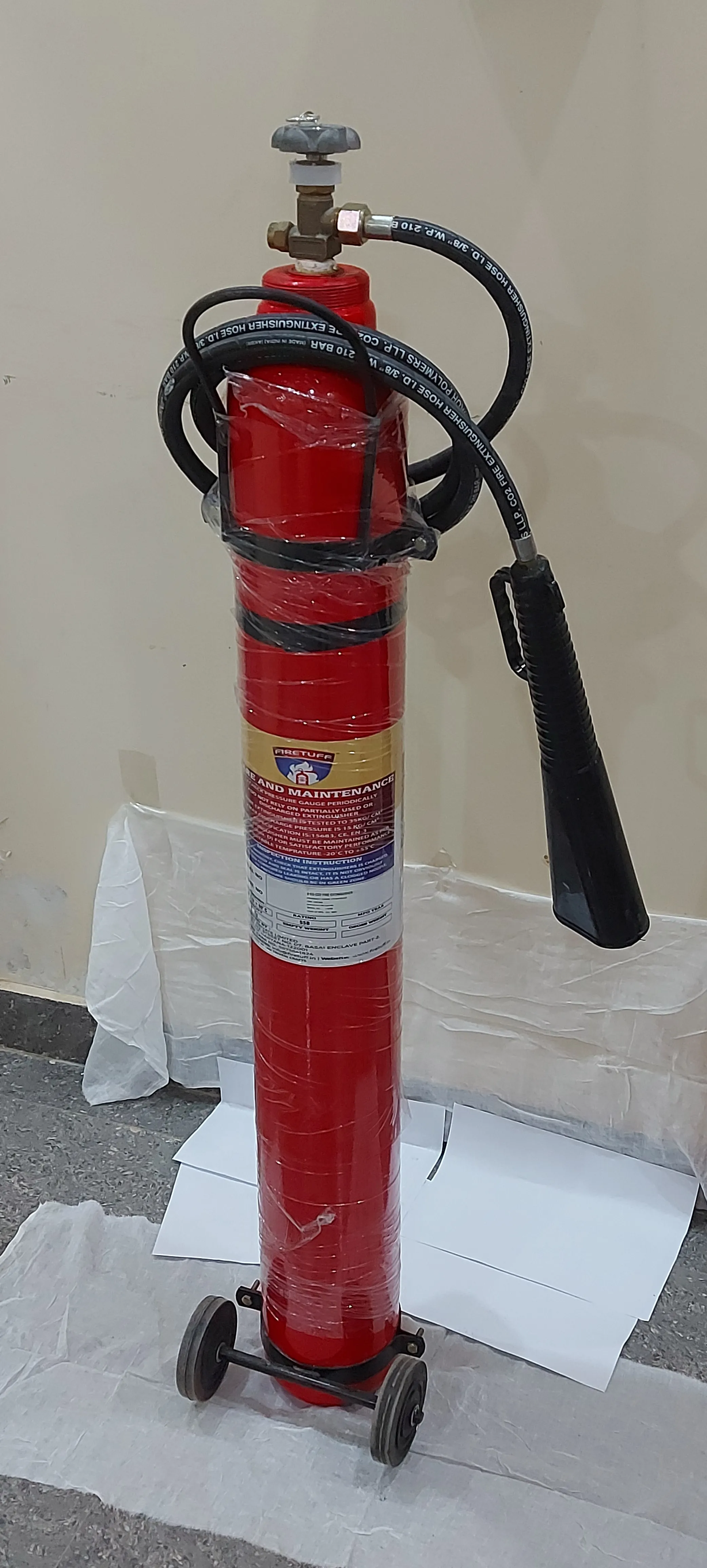

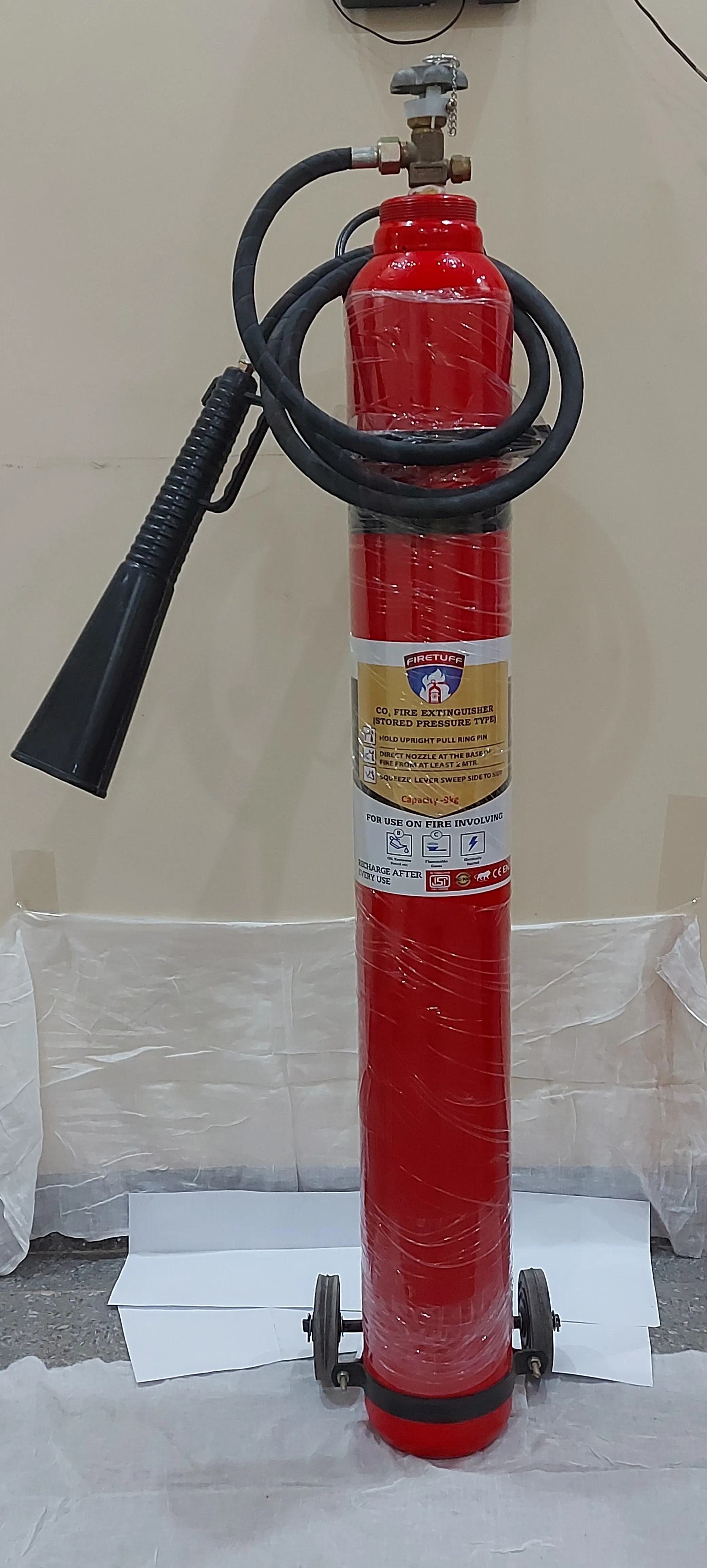

CO2 TYPE FIRE EXTINGUISHERS 6.8 KG FIRE EXTINGUISHER
Other Available Sizes:
5-years warranty*
10 days money back guarantee
ISI
15683
CE
Marketing
EN3
Certified
*1 Year Warranty on Regular Quality and 5 Years Warranty on High Quality Products
Need Help ? Talk to our product experts: +91 9818090824
Category
Details
Manufacturer
M/s Firetuff Private Limited
Trade Mark
“FIRETUFF”
Product Code
FT-CO2-6.8
Standard Code
IS 15683:2018
Type
Portable Stored Pressure
Extinguishing Medium
CO2 Gas (Purity 99.5% as per IS 15222)
Body
Mild Steel (Seamless Body)
Min Wall Thickness
Min 4.0 to 4.2 mm
Valve
High Pressure Brass Valve, Wheel Operated
Dip Tube
Aluminium
Pressure Gauge/Indicator
As per IS 15683:2018
Wall Mounting Bracket with Screw
Mild Steel (Powder Coated)
Discharge Hose with Horn
Wire Braided Hose with Plastic Horn (Burst Pressure >275 Bar)
Performance Requirement
Percentage of Discharge: Not Less than 85% (Actual: 95% approx.)
Fire Rating
55B
Temperature Range
-20 °C to +60 °C
Working Pressure
60-70 Bar
Routine Tests
Pressure Test (Pt): 250 Bar
Type Tests
As per IS 16018
Dimensions
Diameter: 140±5 mm
Height: 700±5 mm (Approx.)
Empty Weight
To be determined (Approx)
Full Weight of Cylinder
To be determined (Approx)
Anti-Corrosive Treatment
Phosphate Treatment followed by epoxy powder coating of body DFT not less than 60µ
Accessories (Brackets & Screws)
Provided
Miscellaneous
Inspection & Testing: As per approved GTP
Marking: As per IS 16018
Approvals: BIS
Maintenance, Care, and Refilling: As per IS:2190
Packing
Corrugated Boxes
