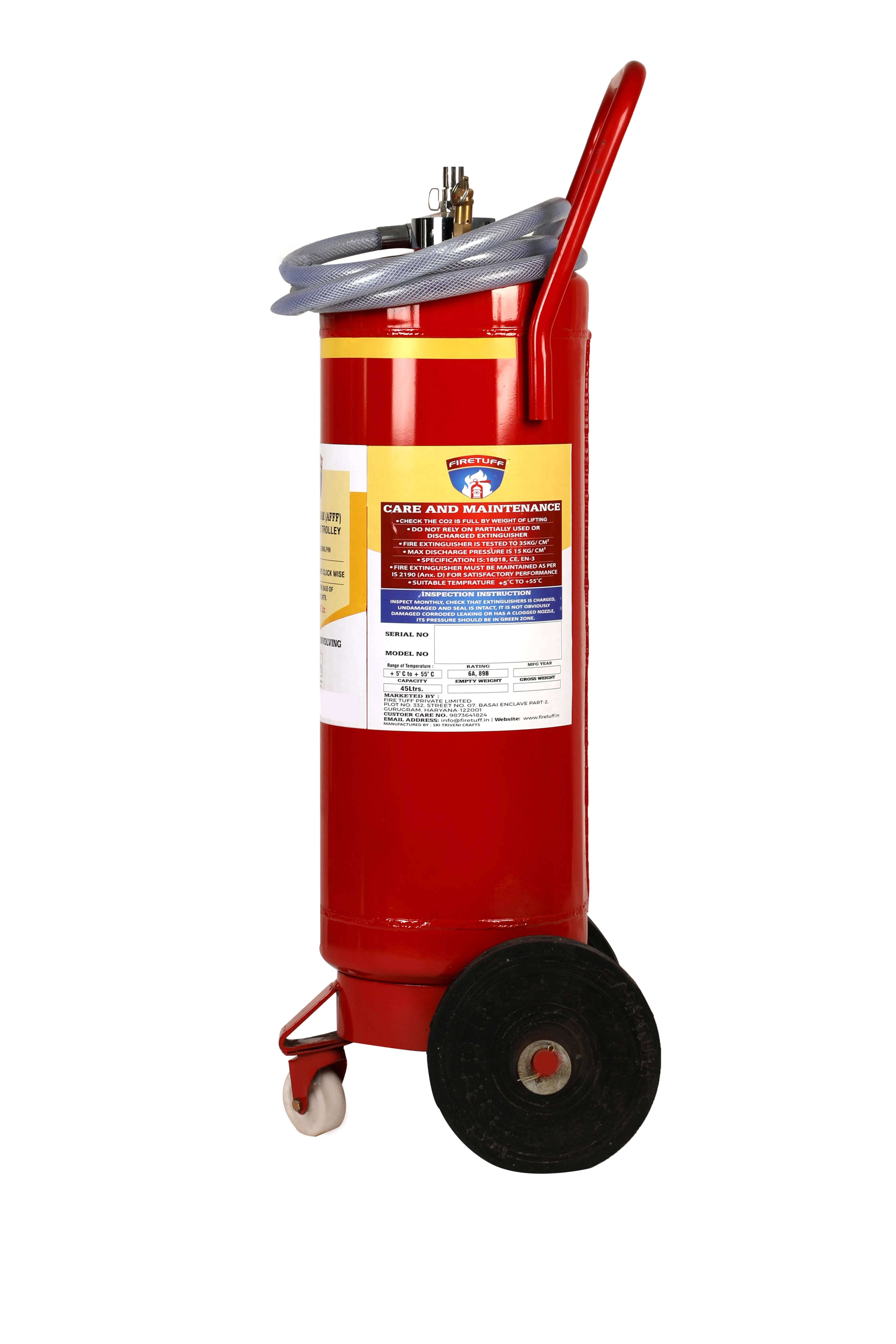

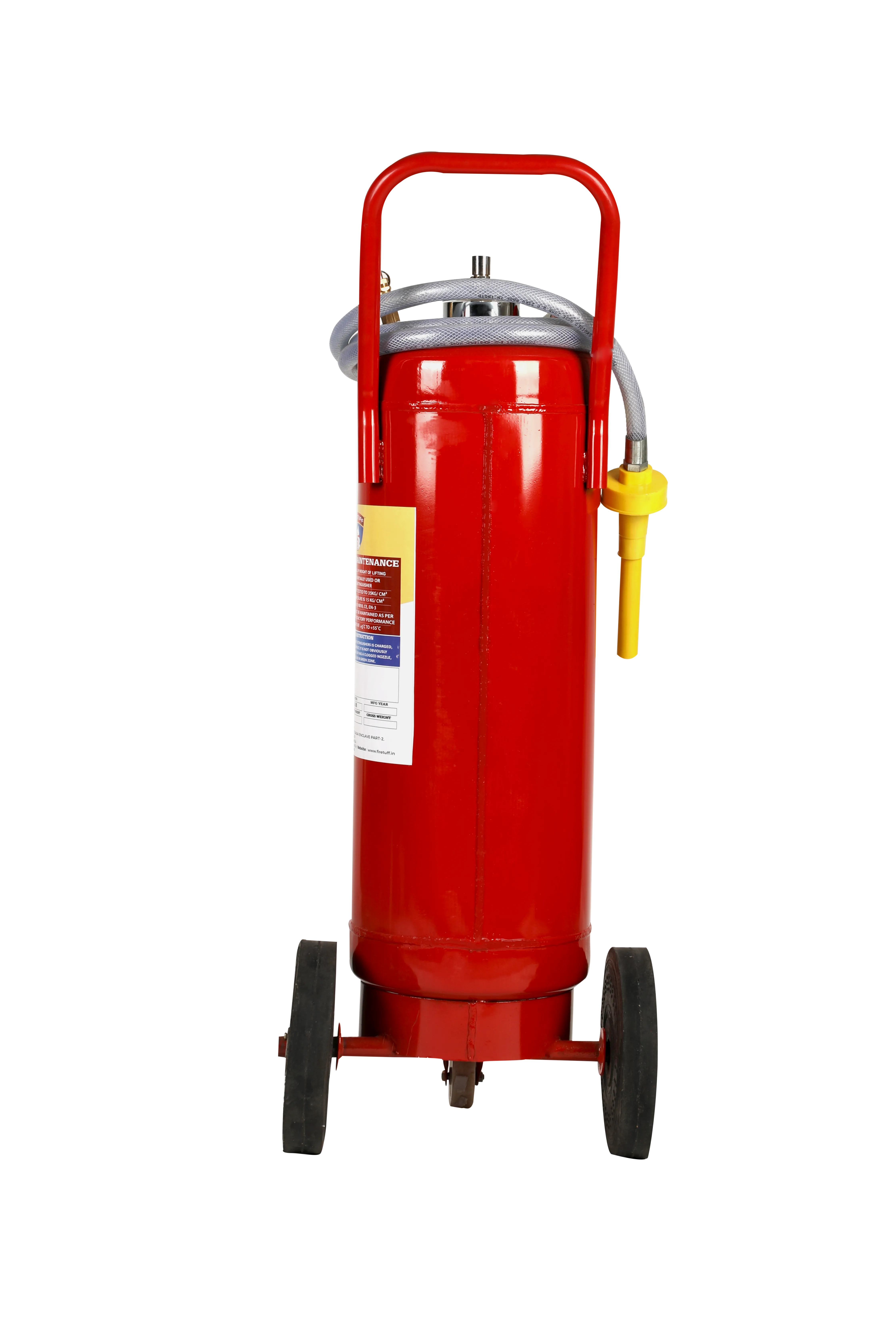

ARAFFF FOAM 50 L FIRE EXTINGUISHER?
5-years warranty*
10 days money back guarantee
ISI
15683
CE
Marketing
EN3
Certified
*1 Year Warranty on Regular Quality and 5 Years Warranty on High Quality Products
Need Help ? Talk to our product experts: +91 9818090824
Category
Details
Manufacturer
M/s Firetuff Private Limited
Trade Mark
“FIRETUFF”
Standard Code
IS 16018
Type
Trolley Mounted
Extinguishing Medium
ARFFF FOAM
Body
Mild Steel Sheet having Max. of 0.25% C, 0.05% P and 0.05%
Neck Ring
M.S. Pipe
Valve
Brass Chrome Plated
Pressure Gauge/Indicator
As per IS 16018
Wall Mounting Bracket with Screw
Mild Steel (Powder Coated)
Discharge with Nozzle
Hose Pipe with Nozzle
Performance Requirement
A) Min. effective Discharge Time: 130 Sec. (Actual: 32 Sec. approx.)
B) Bulk Range of Discharge: Min. 6 meter (Actual: 6.5 meter approx.)
C) Percentage of Discharge: Not Less than 85% (Actual: 94% approx.)
Fire Rating
AIIIBC
Temperature Range
-30 °C to 60 °C
Service Pressure
15 bar
Maximum Service Pressure
18 bar
Routine Tests
Pressure Test (Pt): 35 bar (3.5 MPa)
Minimum Burst Pressure Test (Pb): 55 bar (5.5 MPa)
Leakage Test: Water Dip Test
Type Tests
As per IS 16018
Dimensions
Diameter: 300 mm (Approx.)
Height: 1200 mm (Approx.)
Full Weight of Cylinder
84 kg (Approx.)
Anti-Corrosive Treatment
Phosphate Treatment followed by epoxy powder coating of body DFT not less than 60µ
Accessories (Brackets & Screws)
Provided
Miscellaneous
Inspection & Testing: As per approved GTP
Marking: As per IS 16018
Approvals: BIS
Packing
Corrugated Boxes
